The Binks® 400 range swiveling applicators are designed to be used for high pressure precision robotic sealant dispensing.
The applicators have dedicated swiveling house so they can rotate independently, which is essential to conduct flexible and complex sealing applications. The applicators could have multi nozzles with different angle and spray patterns.
Binks® E415 has, apart from the swiveling function, three individual nozzles giving unsurpassed spraying capability in all directions.
The material flow to each nozzle is controlled
by a material valve integrated into the nozzle head. The material valves are operated by pneumatic solenoid valves thus minimizing reaction times.

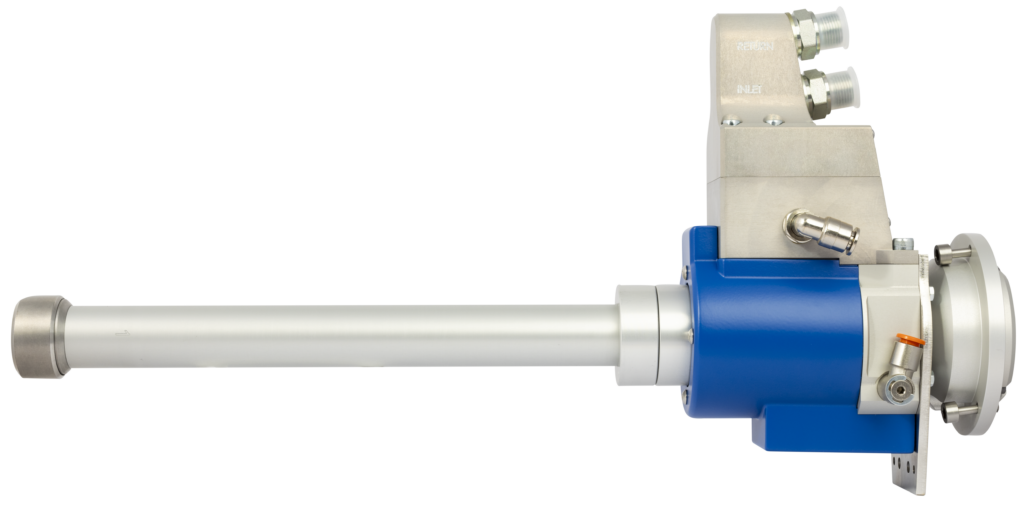

The E420 3D Applicator is primarily used in automotive paint shop sealing applications, including interior seam sealing, under-body coating and sealing.
The E420 3D Applicator provides the capability to dispense material from 3 different dispense patterns and orientations. This allows a single robot to complete multiple dispense operations which increases robot utilization and flexibility.
Binks® E475 CS is used for cosmetic (hem) sealing which requires high precision and quality. The applicator provides a fixed nozzle, or as an option, with automatic nozzle exchange. Material circulation is integrated, and options include temperature and pressure sensors. Material beads are placed with high accuracy to give a clean look on all exposed areas.
Binks® E480 CS is a lightweight, high-pressure gun designed for robotic application of cosmetic sealing, an application re-quiring high precision and quality demands.
The gun is equipped with a swivel for optimum robot flexibility and has two individually operated nozzles.
